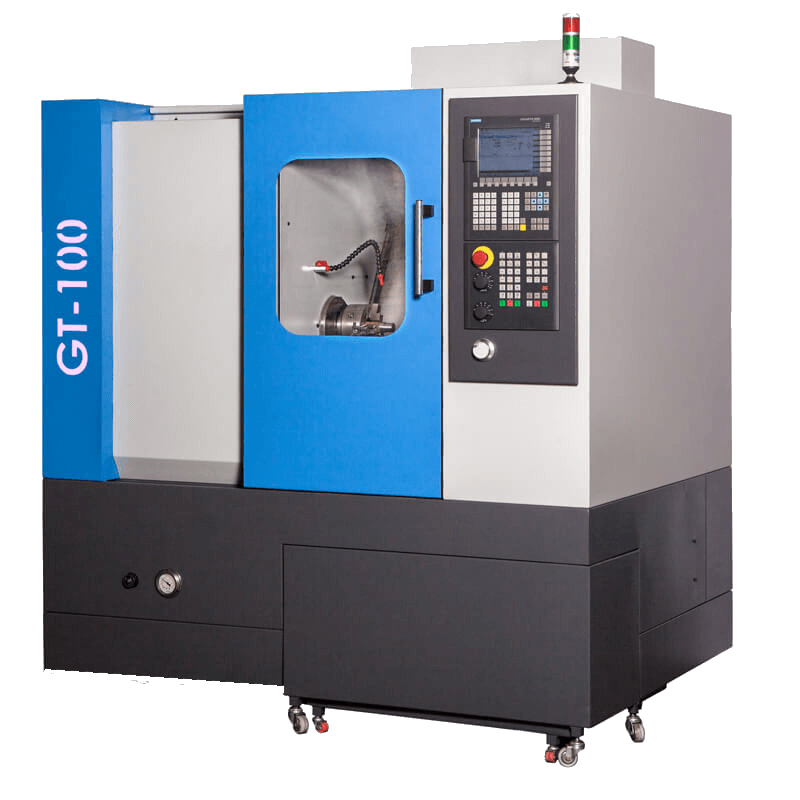

CNC TURNING MACHINE SBL GT-100
Key Features
- 60 Dig True Slant ( Single Piece ) graded casting Bed for Superior rigidity and strength
- Higher Productivity
- Bigger X axis stroke for
more tools accommodation
- Best in class Compact
machine design
- Bar feeding up to 30 mm round bar.
- Wider Axis base with broader LM Guide for Superior Axis Stability .
- High rapid for batter productivity.
- Easy cheeps and coolant
removal
- More scrap storage
- Higher Coolant force for better tool life
Specification
| Title | Description | Unit | Size | ||
|---|---|---|---|---|---|
| Capacity | Swing over bed | mm | 400 | ||
| Chuck dia, max | mm | 135 | |||
*Colet Chuck ( Optional)
| mm | 32 | |||
| mm | 27 | ||||
| mm | 22 | ||||
| Max. turning diameter | mm | 100 | |||
| Max. turning length | mm | 170 | |||
| Admit between centres | mm | -- | |||
| Spindle | Spindle nose | type | A2-4 | ||
| Spindle Type | Cartridge type Spindle Angular contact bearing | ||||
| Hole through spindle | mm | 40 | |||
| Spindle Bearing Dial | mm | 60 | |||
| Spindle speed | rpm | 50-3000 | |||
| Spindle motor power | kw | 3.7 | |||
| Axis Detail | Cross travel X-axis | mm | 415 | ||
| Longitudinal travel Z-axis | mm | 240 | |||
Rapid traverse rate
| m/min | 20 | |||
| m/min | 20 | ||||
Ball Screw
| mm | 25 X 10 ( C3 Class ) | |||
| mm | 32 X 10 ( C3 Class ) | ||||
Rated Torque
| Nm | 6 Nm | |||
| Nm | 6 Nm | ||||
| Tools | No. of Tools | nos. | Base On Work piece | ||
| Tool shank size | mm | 20 X 20 | |||
| Maximum boring bar dia. | mm | 32 | |||
| Accuracy | Repeatability | mm | 0.005 | ||
| Positioning | mm | 0.008 | |||
| CNC system | Controller | - | Siemens 808 D Advance | ||
| Machine size | Front x Side x Height | mm | 1720 X 1340 X 1900 | ||
| Machine Weight (Approx) | kg | 1900 |
Standard Features
Optional Features                                    
- Coolant supply equipment
- Foot switch
- Hand tool kit ( including small tool for operations )
- Hydraulic chuck and actuating cylinder
- Hydraulic power unit
- Levelling jack screw and plates
- Lubrication equipment
- Soft jaws & Hard jaw ( 1 Pair )
- Work light
Optional Features                                    
- Colet Chuck
- Master Sleeve A32
- Collets For Colet Chuck
- Panel Ac
- Bar Feeder interface
- Operating Door Inter lock
- Tower lamp
- Tail Stock
- Siemens Servo Spindle 3.7 / 5 Kw
- Tool Holders & Sleeves                                 
