CNC Simulation Rack

  • CSR-840D-SL-M
  • Siemens Sinumerik
  • 840D SL - Milling
Technical Specification
Supply Voltage 400V AC
Dimension (W × H × D) 700 × 1800 × 600 mm
Weight Approx. 150 Kg
Ambient Temperature Storage/Transport: -20°C to +60°C
Operation: +5°C to +40°C

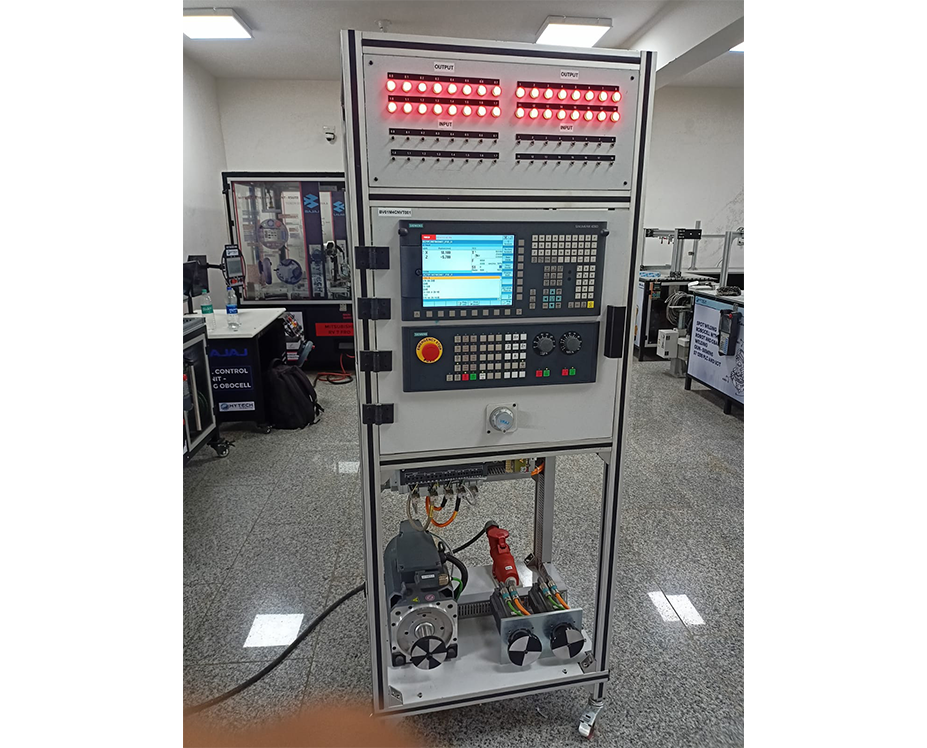

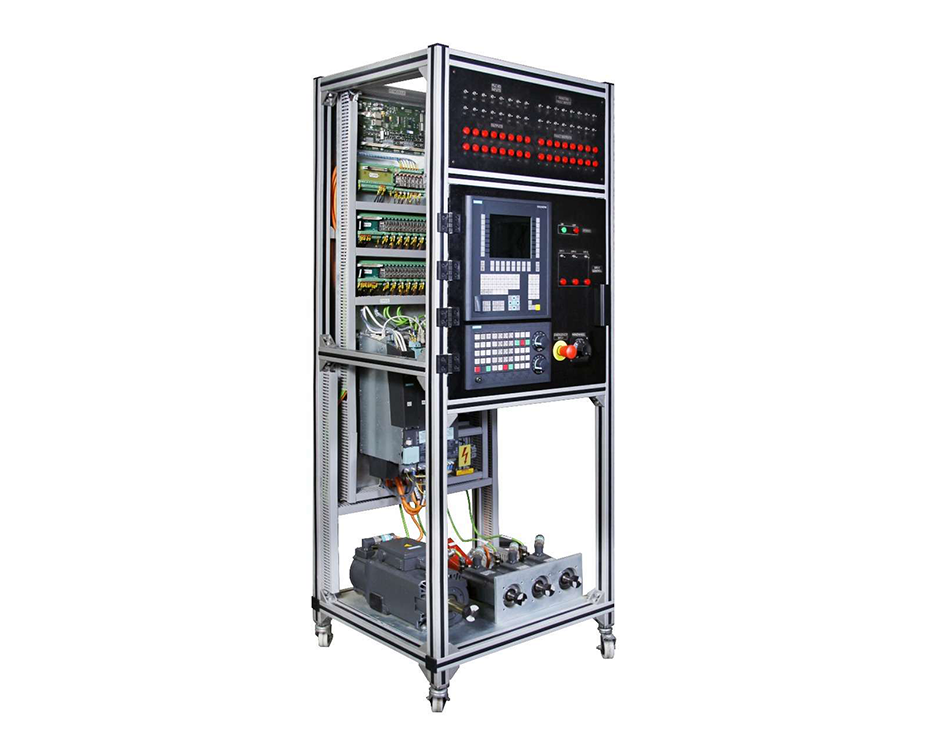

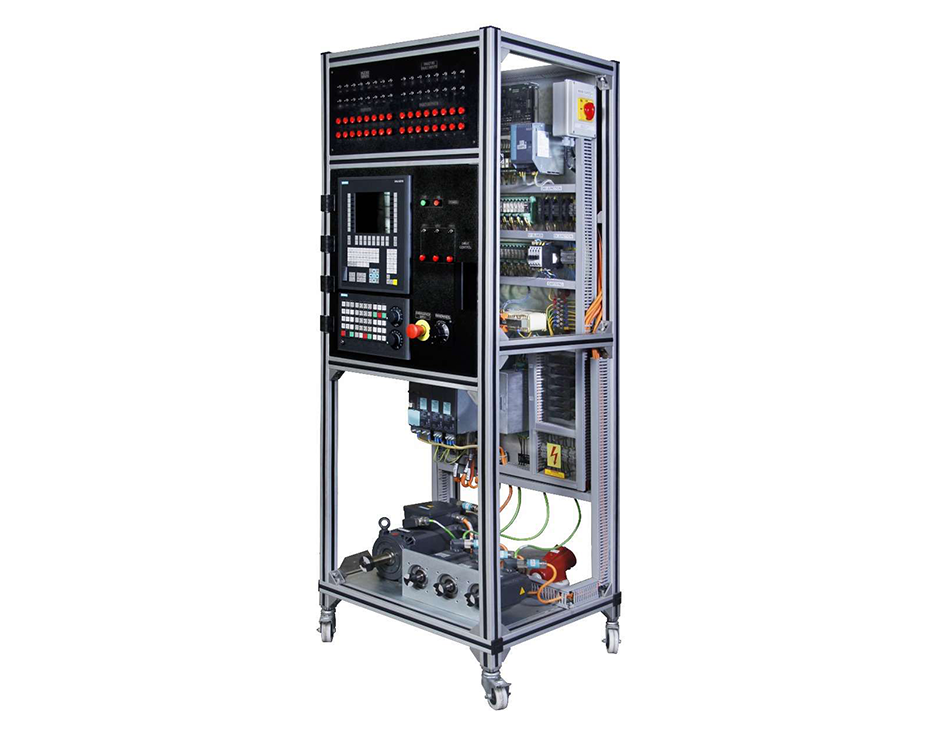

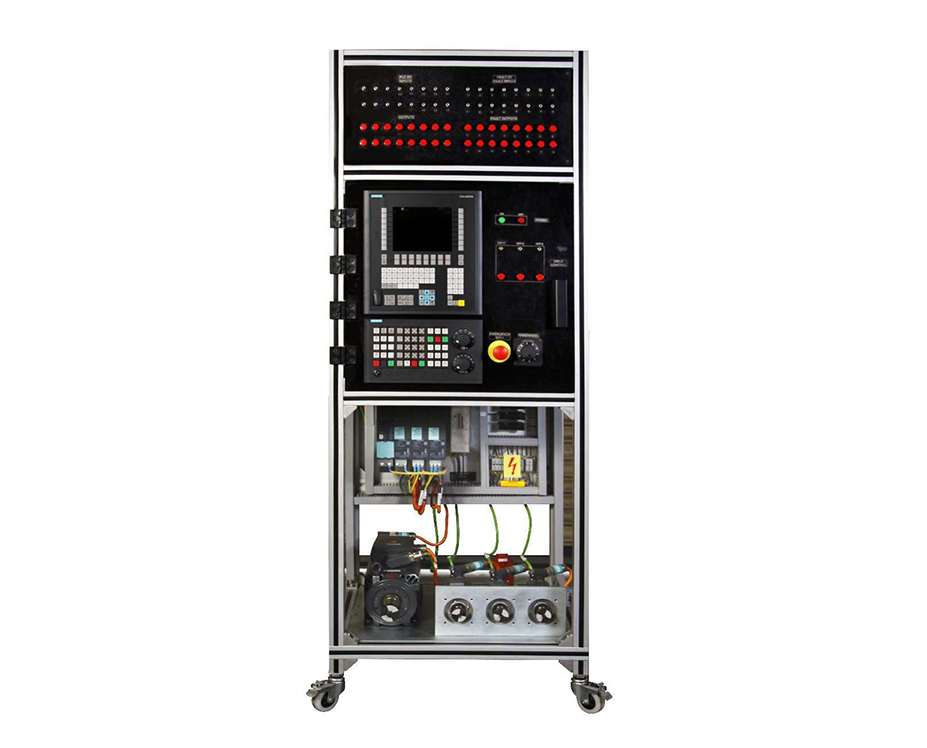

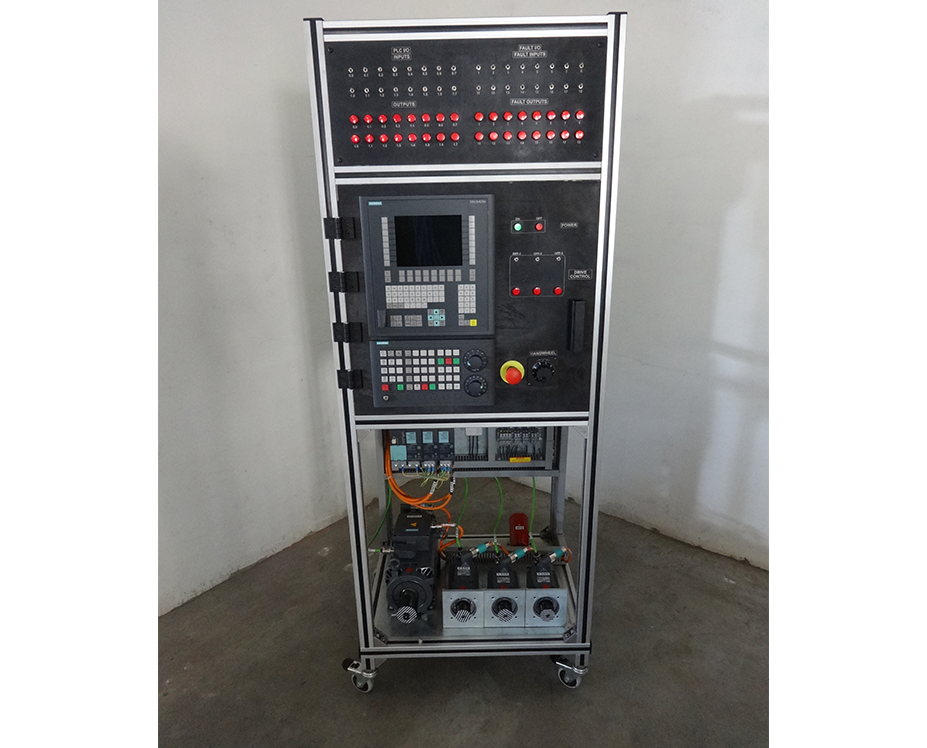

The CNC Simulation rack is highly efficient way to impart the significant knowledge of complete CNC System-with practical movement of motors as an individual axis in the areas-job programming, system commissioning including PLC programming, development & troubleshooting

Design

  • Also available with Siemens Sinumerik 808D Basic, 808D advance & 828D systems with turning & milling configuration.
  • Includes Sinumerik MCP.
  • Available with 2 or 3 servo and spindle
  • Designed with high grade aluminium section giving higher strength.
  • Designed as a standalone unit with all basic features of CNC machines.
