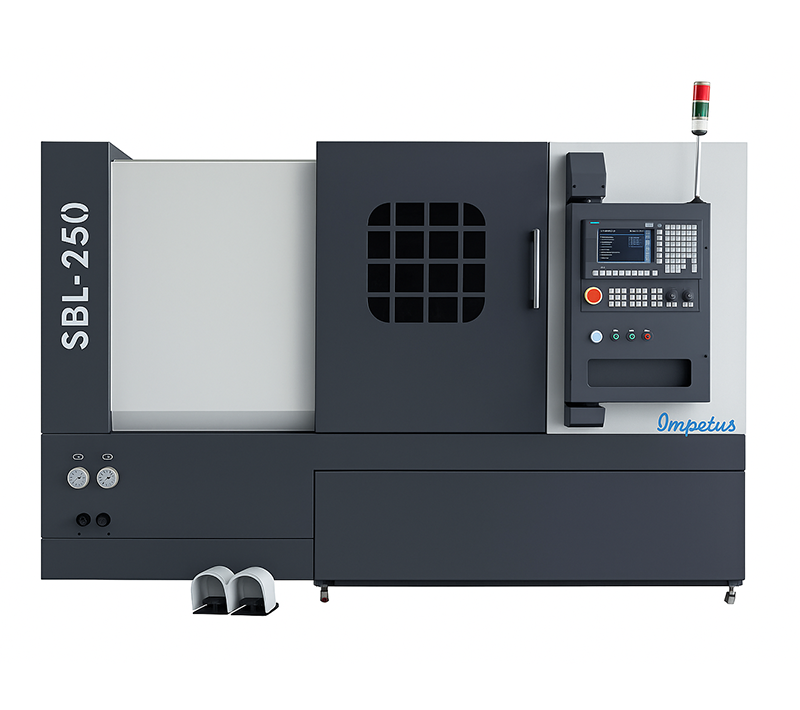

| SPECIFICATIONS | UNIT | SBL 250 |
|---|---|---|
| Max. Swing Over Bed | kw | 500 |
| Chuck Dia | mm | 250/300 |
| Std Turning Dia | mm | 260 |
| Max. Turning Dia. With Limited Length | mm | 450 |
| Max. Turning Length | mm | 500 |
| Max Bar Capacity | mm | 50/60 |
| Spindle | ||
| Spindle Nose | A2-6 | |
| Spindle Bore | 65 | |
| Spindle Speed Range | 50-3000 | |
| Spindle Motor Power (Cont/30min) | 11 | |
| Axis Detail | ||
| Rapid (X & Z Axis) | m/min | 20 |
| Ball Screw (Z-Axis) | mm | 40*10 |
| Ball Screw (X-Axis) | mm | 32*10 |
| LM Guide (Z Axis) | mm | 45 |
| LM Guide (X Axis) | mm | 35 |
| Turret | ||
| No. Of Stations | 8 | |
| Tool Size (Cross Sectional) | 25*25 | |
| Maximum Boring Bar Diameter | mm | 40 |
| Tail Stock | ||
| Quill Dia | mm | 80 |
| Quill Stroke | mm | 100 |
| Accuracy | ||
| Repetability | mm | 0.01 |
| Positioning | mm | 0.005 |
| CNC System | ||
| Controller | Siemens 808D Advance | |
| Machine Size | ||
| Dimension-L x B x H | mm | 2700*2050*1770 |
| Machine Weight (appx.) | kg | 4800 |
